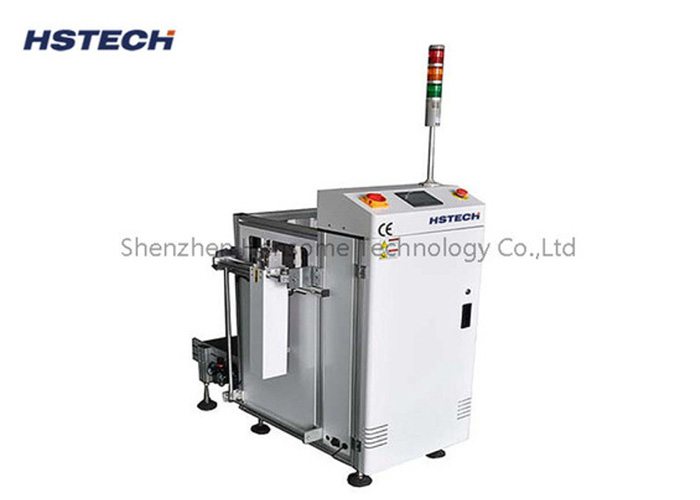

90 Degree PCB Loader with Customizable Conveyor Speed for SMT Production
Application
The board loading machine is a key component in SMT production lines, facilitating automated PCB board loading, enhancing productivity, and ensuring quality consistency. It is prevalent in the electronic manufacturing sector.
Specification
| Product name | 90 degree PCB Loader Machine |
| Machine length | 1200mm or 900mm |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Magazine qty | 3 pcs |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Light status | 3 color display |
| Signal | SMEMA |
Features
-
Features a specialized aluminum profile guide rail and unique Houndstooth plastic chain for precision.
-
Equipped with a 90W brake motor that utilizes a ball screw mechanism for smooth magazine ascent and descent.
-
Incorporates a pneumatic clamping structure for secure board holding.
-
Standard configuration includes 3 magazines: 1 top magazine and 2 bottom magazines for efficient operation.
-
Offers flexible direction of movement: Right to Left or Left to Right, adapting to various production layouts.
-
Customizable pitch of the lifting platform available in options of 10, 20, 30, or 40 for precise alignment.
-
Controlled by a PLC (Programmable Logic Controller) for reliable automation and programming flexibility.
-
Equipped with an automatic loading function, streamlining the production process.
-
Pneumatic components feature adjustable push plate cylinder positions, facilitated by a screw for precise positioning.
